Equipment power planning
Dedicated Circuits for Tools and Equipment
A dedicated circuit reserves a branch circuit for its intended equipment instead of unrelated uses. Whether you need one depends on the equipment instructions, how it will run, the existing circuit and the electrical supply. Mister Safety reviews the equipment, panel, route and required protection before defining the installation.
A defined installation estimate. Clear charges before paid diagnostic work.
Choose what you are powering
Start with the project you have in mind. General circuit planning belongs here; equipment with its own installation requirements has a dedicated service guide. You do not need to know a breaker size to make the first inquiry.
Dedicated, shared or simply another outlet?
These are different decisions. A dedicated circuit is reserved for the intended equipment. A shared circuit serves more than one outlet or load. Adding a receptacle creates another connection point, but does not create additional circuit or service capacity.
Sharing is not automatically improper. Manufacturer instructions, the permitted use of the circuit, simultaneous demand and the existing installation determine whether it is suitable. An inconvenient outlet location and an overloaded circuit can feel like the same problem until the actual conditions are assessed.
| What you need | What changes | What still needs review |
|---|---|---|
| Dedicated power | A circuit reserved for the intended equipment. | Equipment instructions, electrical supply and the complete circuit. |
| A suitable shared circuit | Several permitted uses on one branch circuit. | Connected loads, operating pattern, protection and condition. |
| An additional outlet | A connection point where it is useful. | The capacity and permitted use of the circuit serving it. |
Sources: Grizzly Industrial · G1023RL Series Owner's Manual / Mister Safety · More Circuits or More Electrical Capacity?
Equipment requirements set the starting point
The exact model and its installation manual matter more than a broad label such as table saw, pump or charger. Equipment in the same product family can have different supply, current and connection requirements. Tell us the model or the shortlist you are considering.
A nameplate is the manufacturer label identifying electrical and model information. Supply voltage, phase, input ratings and manufacturer instructions help define the design. The voltage printed on a battery pack is not a substitute for the charger’s AC supply requirements.
If you are planning workshop equipment now and an EV charger later at a Wesley Chapel home, share both plans before choosing the first circuit. The equipment, simultaneous use and available electrical capacity matter more than an empty breaker space.
Describe its use
Explain what may run at the same time and which existing uses need to remain available.
Plan the location
Tell us where the equipment will sit, the connection it requires and whether future additions are likely.
Route and voltage drop

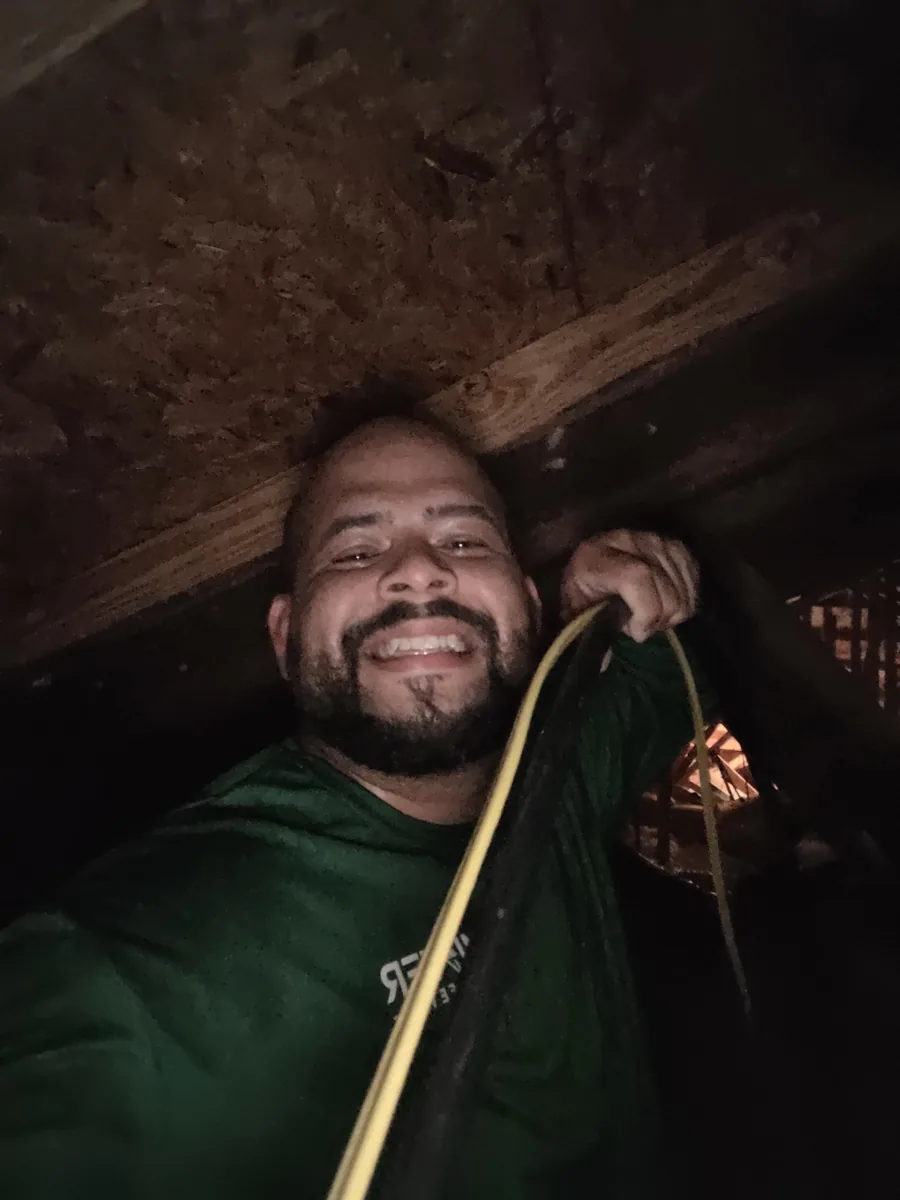

The conductor route may pass through walls, an attic, exterior areas or an underground path. Actual route length, access, temperature and installation method can affect the design and labor. A straight-line distance across a yard is not the complete installed path.
Voltage drop is the reduction in voltage along the conductors while current flows. Its importance depends on the actual equipment, current and route. There is no single maximum distance or generic wire size that answers every project. Outdoor work also needs suitable wiring methods, enclosures and protection.
Sources: Southwire · Romex Brand SIMpull Copper Type NM-B Cable, SPEC 10028 / Southwire · Voltage Drop Calculator
Panel space and electrical capacity are separate
An empty breaker opening is physical space. Usable capacity concerns the demand the electrical supply can support. A panel can have space without sufficient capacity for the proposed load, or adequate capacity without the necessary compatible breaker positions. Both checks matter.
The breaker must be appropriate for the actual panel. Physical fit and a familiar brand name are insufficient. A subpanel may provide distribution space, but it does not create additional utility-supplied capacity. The right scope may be a circuit alone or a broader assessed supply change.
Breaker space
Is there an appropriate position for the required breaker?
Compatibility
Does the panel accept the correct listed breaker and arrangement?
Usable capacity
Can the evaluated electrical supply support the proposed demand?
Sources: Schneider Electric · Differences between QO and Homeline Load Centers / Eaton · Load Center Fundamentals
Protection is part of the complete circuit
The breaker, conductors, connection and equipment are coordinated as one installation. Overcurrent protection, ground-fault protection, arc-fault protection and disconnecting means have different jobs. A dedicated circuit is not an exemption from required protection.
GFCI
Addresses ground-fault shock risk. Required coverage depends on the location, equipment, connection and applicable rules.
AFCI
Addresses specified arcing hazards. Some installations need both AFCI and GFCI protection; the terms are not interchangeable.
Disconnect
The required way to disconnect equipment depends on the equipment instructions and applicable installation rules.
A circuit-planning checklist
Bring the information you already have. These questions help us define an estimate; they do not ask you to inspect live wiring or approve a design yourself. If the reason for the call is an unexplained fault, describe it before choosing a new-circuit solution.
A clear scope before installation
A useful estimate separates equipment purchase from electrical installation. Route access, connection method, compatible protection, any panel work, permits and restoration can all affect the scope. A retailer’s equipment price does not establish the installed project cost.
Confirm the property jurisdiction and electrical permit scope before installation. A mailing address does not by itself identify the permitting authority. If the project changes the service, the actual serving utility may need to be involved; an ordinary branch-circuit addition does not automatically require a utility upgrade.
A free estimate prices defined installation or upgrade work. Investigating an unknown fault is paid diagnostic work, with the charge explained and approved before troubleshooting. Ask which permit coordination and finish restoration are included, and read the warranty terms that apply to the approved work.
Sources: City of Orlando · Applicable Codes for Permitting / Tampa Electric · Construction
In Simple Terms
A dedicated circuit gives the intended equipment a reserved electrical path. It does not automatically give the house more available power, and it is not the answer to every tripping breaker.
Think of the equipment, electrical supply and route as three parts of the same decision. First identify what needs power. Then verify the supply can support it. Finally plan a suitable path and connection, including the protection the installation requires.
Panel space means room for appropriate breakers. Capacity means the demand the supply can support. More outlets or another panel do not create capacity by themselves. If you are unsure which issue you have, describe the goal or symptoms and let the assessment determine the next step.
Sources: Mister Safety · More Circuits or More Electrical Capacity? / Grizzly Industrial · G1023RL Series Owner's Manual / Schneider Electric · Differences between QO and Homeline Load Centers
Your questions, answered.
Does every large appliance need a dedicated circuit?
The actual model, manufacturer instructions and applicable rules determine the answer. A generic appliance name or its physical size is insufficient. Appliance-specific questions belong in the Appliance & Equipment Circuits guide.
Can an existing circuit be reused?
Sometimes. Its condition, connected loads, conductors, route and protection must suit the proposed equipment. Verification comes before reuse.
How far can a dedicated circuit run?
There is no single distance limit for every installation. Equipment requirements, load, conductor selection and route conditions determine an appropriate design.
Will a new circuit stop my breaker tripping?
Only if assessment shows that circuit changes address the cause. Repeated tripping and other abnormal symptoms need appropriate investigation; a new circuit is not a remote diagnosis or a guaranteed repair.
Does Florida’s $7,500 permit exemption cover a new circuit?
No. The 2026 exemption for certain smaller single-family projects excludes electrical work. Confirm the permit requirements for the actual electrical scope and property jurisdiction before installation.
